Product introduction:

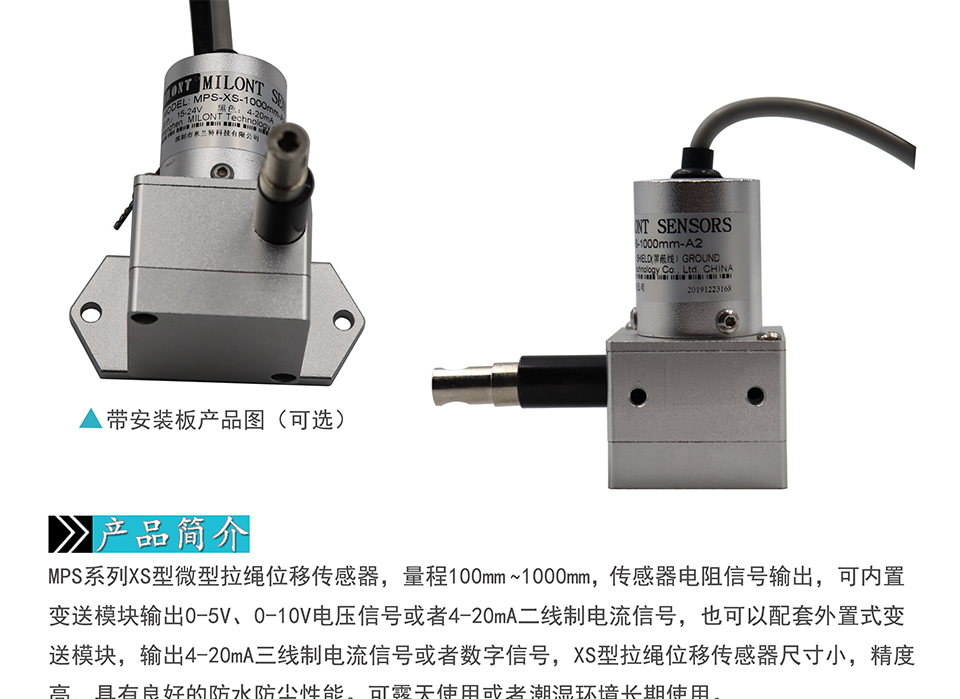

MPS series XS type micro cable?displacement sensor, the range of 100mm~1000mm, the sensor resistance signal output, can be built in the transformer module output 0~5V, 0-10V voltage signal or 4-20mA two-wire current signal, can also be matched with the external transformer module, output 4-20mA three-wire current signal or digital signal,?XS type drawstring displacement sensor has the advantages of small size, high precision and good waterproof and dustproof performance.?It can be used outdoors or in wet environment for a long time.
Performance parameter:
Range: 100-1000mm
Linear accuracy: ±0.15%
Repeatability accuracy: ±0.02%
Resistance value（±10%）：5KΩ，10KΩ
Resolution: infinite?no broken parsing
Maximum allowable working voltage: 24 V DC
Output signal: resistance output; Voltage signal (0-5V, 0-10V); Current signal (4-20mA); RS485 digital signal
Sensor type: wire wound hybrid potentiometer (encoder)
Maximum working speed: 1m / S
Temperature range: - 40 ℃ to + 80 ℃
Service life: 5 million times
Application area:
It is mainly applicable to:?Storage position location, the opening of the gate is dam protection, control, pressure machinery, paper machinery, textile machinery, sheet metal machinery, packaging machinery, printing machinery, level control instrument, construction machinery, industrial robots, injection machines, woodworking machinery, elevators, air compressor, hydraulic press, height of machine, x-y axis length displacement, level measurement and other automation measurement occasions.
